Sensor Type: Green (Standard)


The "Green" sensor type is used for applications where the sensor is expected to actuate every press cycle. For the press to run, some portion of the sensor signal must occur during some portion of the "Ready" window. The sensor is allowed to be ON outside of the Ready window, however to ensure that the sensor is not shorted or "stuck" ON, a "Failsafe" check is performed that requires the sensor to turn OFF (at least momentarily) at some point outside of the Ready Window. A typical use for the Green sensor type is detecting part ejection.

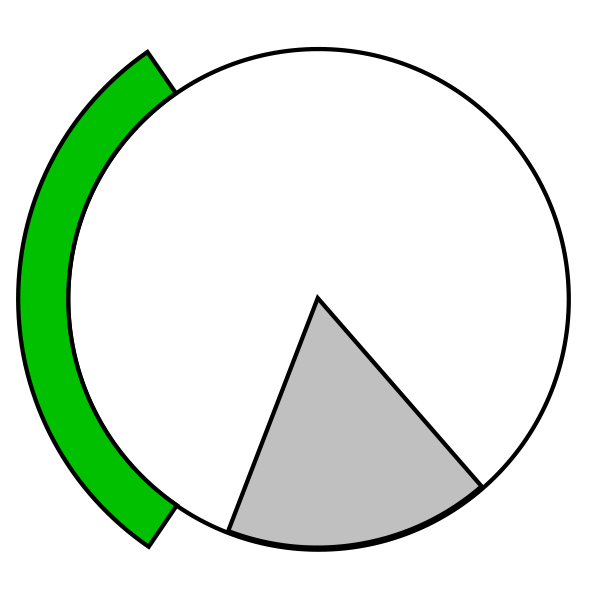

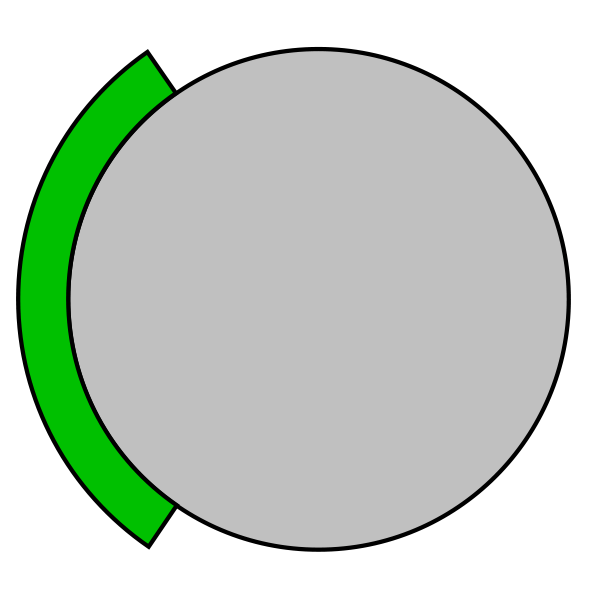

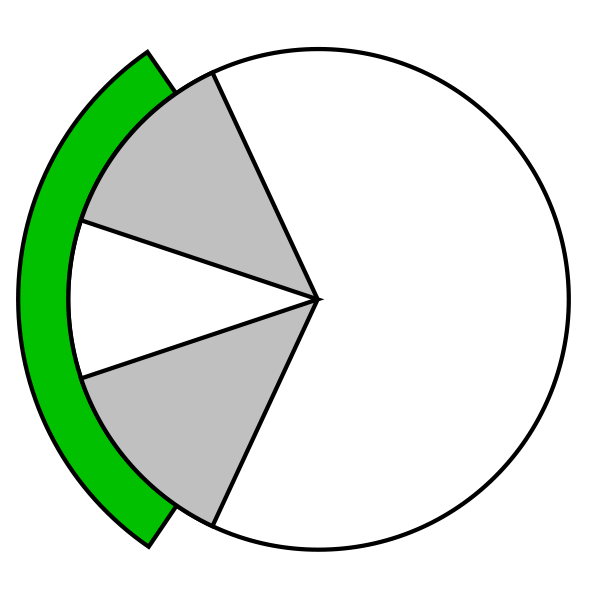

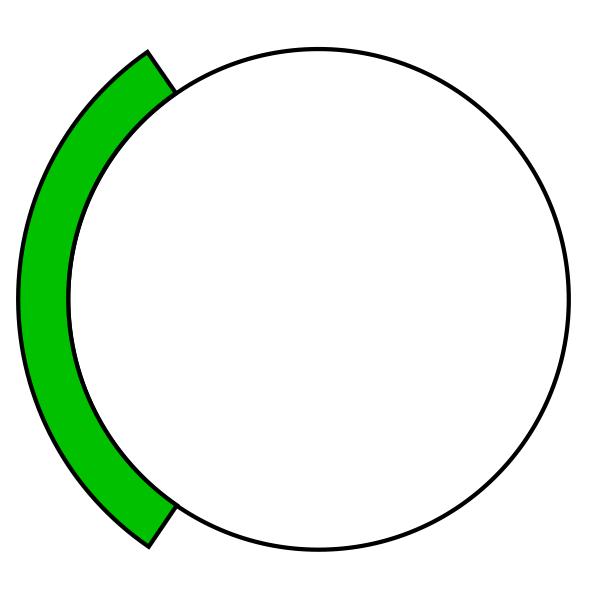

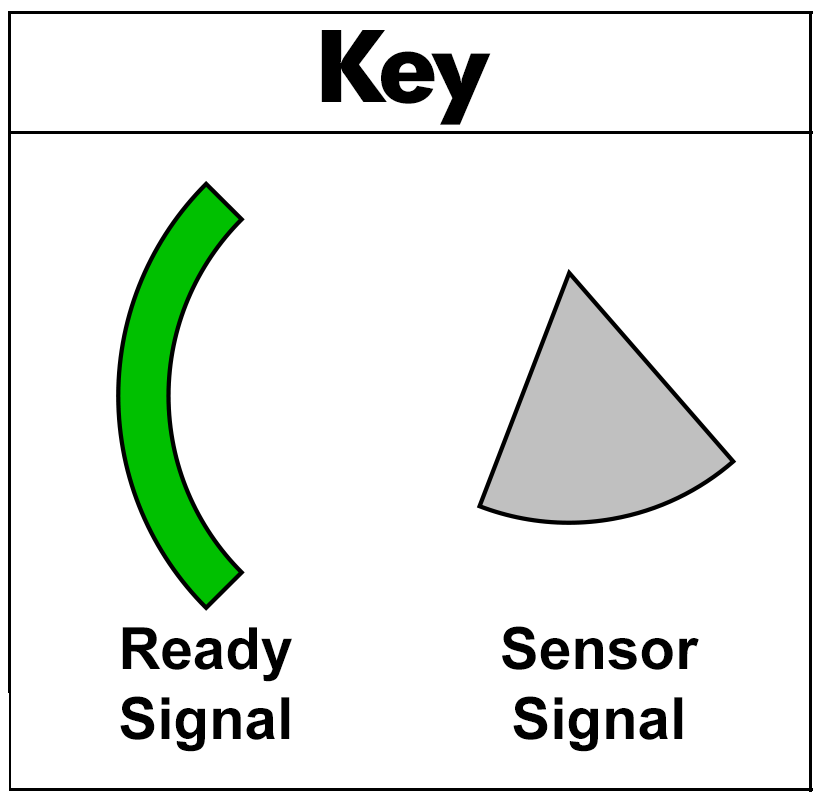

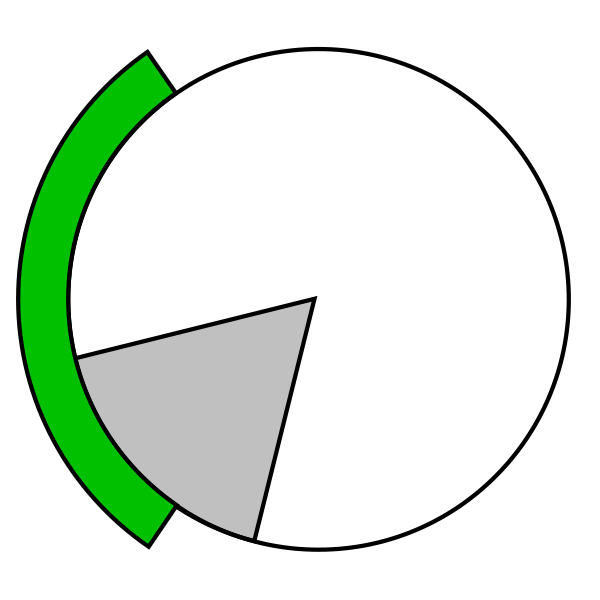

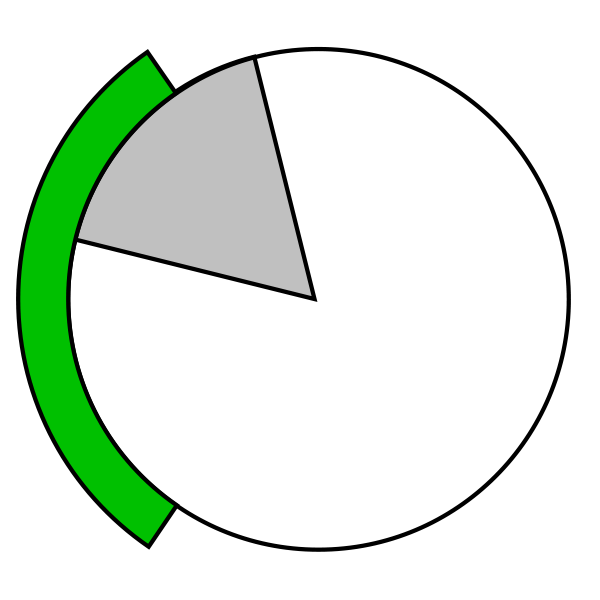

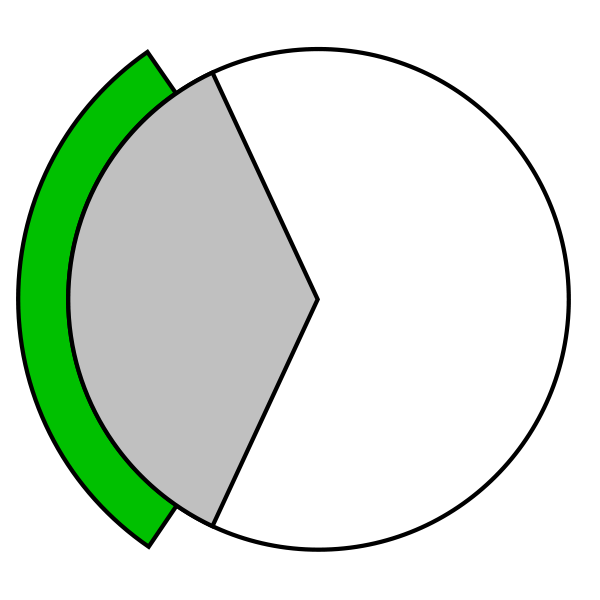

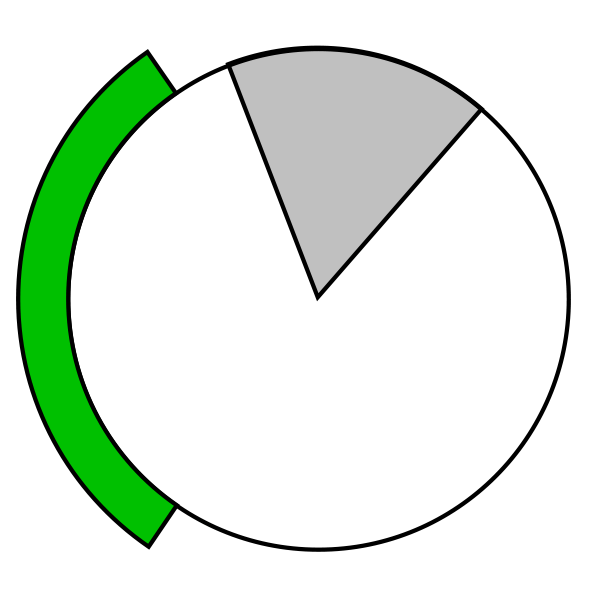

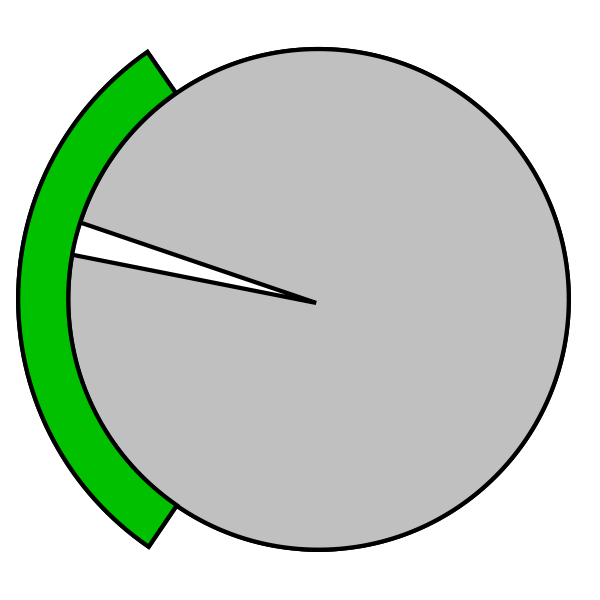

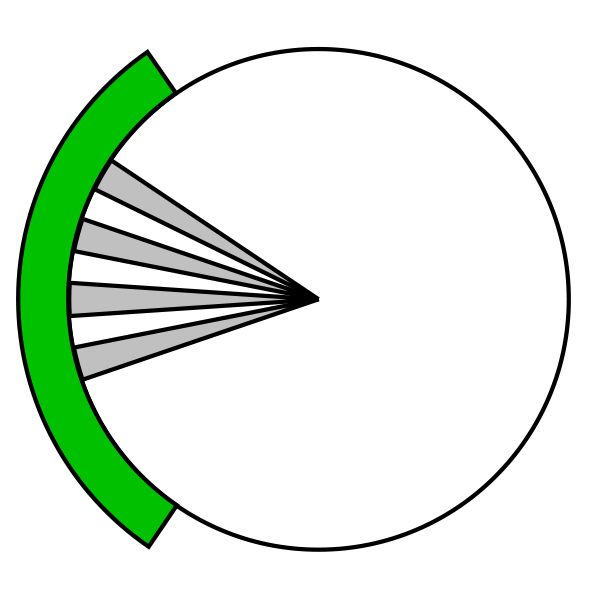

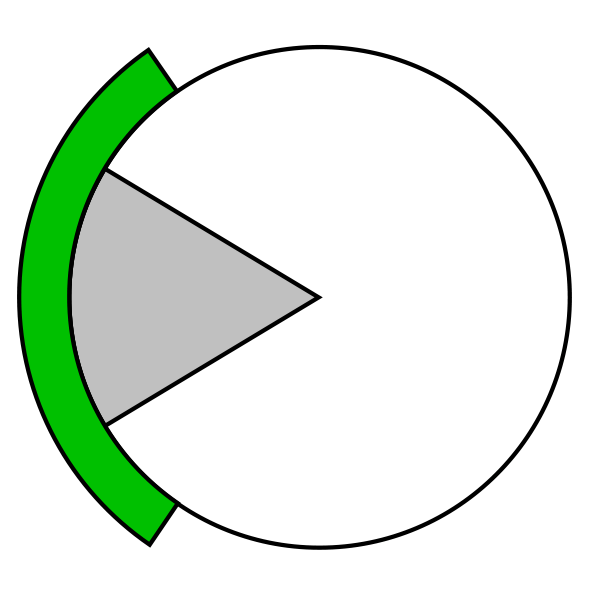

The diagrams below show examples of sensor/ready window interactions and the results.


OK

OK

OK

OK

OK

OK

OK

Press Stops

Press Stops

Press Stops

Press Stops

Press Stops
