Sensor Type: Green Quick Check
The Green Quick Check differs from the Standard Green sensor type in that the sensor actuation signal must occur ONLY during the ready window. If a Green Quick Check sensor turns on anywhere outside of the ready window, the press will be signaled to stop.
The Green Quick Check sensor type is useful for monitoring side-action cams, and detecting any other events that must start and finish during a certain portion of the press cycle.

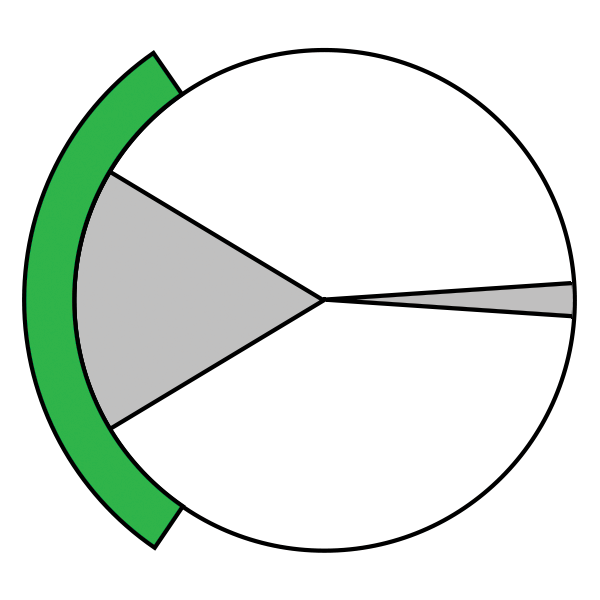

The diagrams below show examples of sensor/ready window interactions and the results.
OK
OK
Press Stops
Press Stops
Press Stops
Press Stops
Download a single-sheet version of this page (PDF).
